LS Series Chevy Brodix BR7
LS Series cylinder head
This 2299 rocker set is Designed for the Brodix BR7 ls7 style head. This set will require the head’s to be machined at a specific angle and then the bolt holes redrilled and tapped.
+ Cylinder Head Mfg / Part #: Head type (aftermarket vs OEM). Part #s are often stamped in front / rear of castings.
+ Valve Length: Measured as overall length or + overlenth from OEM dimensions
+ Spring Diameter: Diameter or Mfg part #.
+ Pushrod Diameter: Width measured in thousandths.
+ Lash Caps: If installed on tip of valve stem – yes or no.
+ Rocker Ratios: Intake & Exhaust
+ Head Porting Information: If yes, please include provider name / company to determine alteration of valve spacing.
+ Block Type / Brand: Mfg / Part # (aftermarket vs OEM).
+ Cam Location: Standard or raised on aftermarket blocks for crankshaft clearance.
+ Deck Height: Standard or raised of aftermarket blocks for large displacement applications
+ Cam Type: Hydraulic, Roller or Hydraulic Roller
+ Lobe or Valve Lift: Lobe if rocker ratio is unknown.
+ Lifter Offset: Standard or Offset (Intake and / or Exhaust)
+ Lifter Height: Standard or Tall

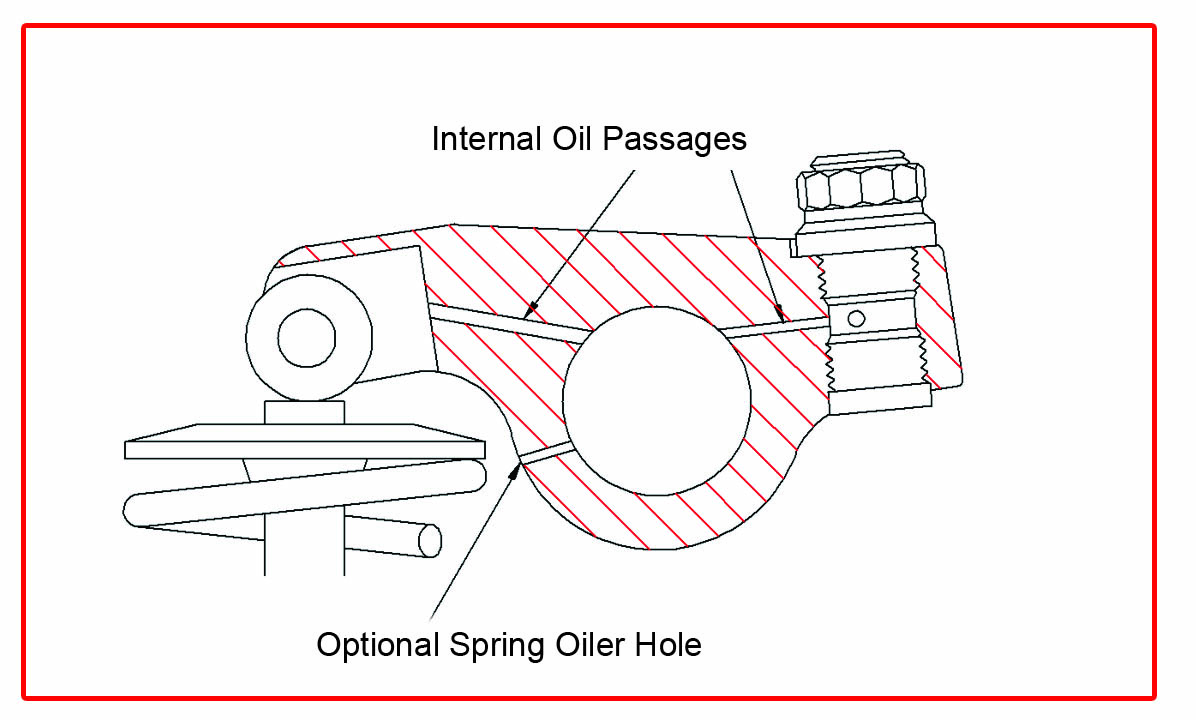

+ Spring Oil Hole:
+ Std or Lightweight:
+ Needle Bearing Tips:
+ Spare Rockers: Quantity needed.
