11001 – T&D Deluxe Pinion Depth Checker

A perfect way to set-up a wide variety of differentials

T&D Machine Products, manufacturers of the finest in shaft-mount rocker systems for virtually every pushrod engine, also offers the finest in tools to properly set up a differential in the correct manner. The T&D Pinion Depth Checker is an indispensable tool whether installing one gearset a year or a dozen. And, this kit makes the job simple enough for even a novice mechanic to become a rear end expert. Installing the pinion at the correct depth extends gear life and reduces power-robbing friction. It’s easy to get a perfect tooth contact pattern with a T&D Pinion Depth Checker. Convenient 12-1/2” x 14-1/2” x 5” carrying case with laser-cut, oil-resistant, high-density foam insides.

Part no. 11001   Deluxe Pinion Checker for above differentials plus Ford 8″, 8.8″, 9″, GM 9.5/10.5 14-bolt, Mopar 8-3/4, early GM “B”, “O”, “P”, Dana 30-60, etc.

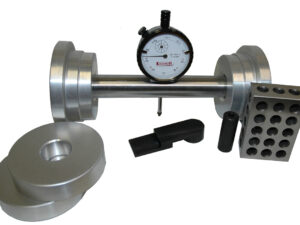

Kit includes:

• 1” travel Dial indicator
• Three Extensions with calibration tubes
• Two pair of hubs that have three diameters each
• Two target plates
• Precision ground cross shaft
• Detailed instructions
• Carrying case with foam
